PVS-14E APW Night Vision Monocular Gen 2+ White Phosphor

PVS-14E APW Night Vision Monocular Gen 2+ White Phosphor

$3,995.00

**Export Compliance Notice**
By adding to cart, you acknowledge that you are a U.S. person, do not intend to export this product, and comply with all ITAR and EAR restrictions and regulations.

PVS-14E APW Multi-Purpose Night Vision Monocular Gen 2+ FOM 1600+ Auto Gated White Phosphor 11PE41284124111

Global Vision expands on its commitment to continuous improvement by updating the tried-and-true PVS-14 night vision system. New PVS-14E is an enhanced version that offers subtle, but crucial, improvements in its battery system flexibility and overall weight.

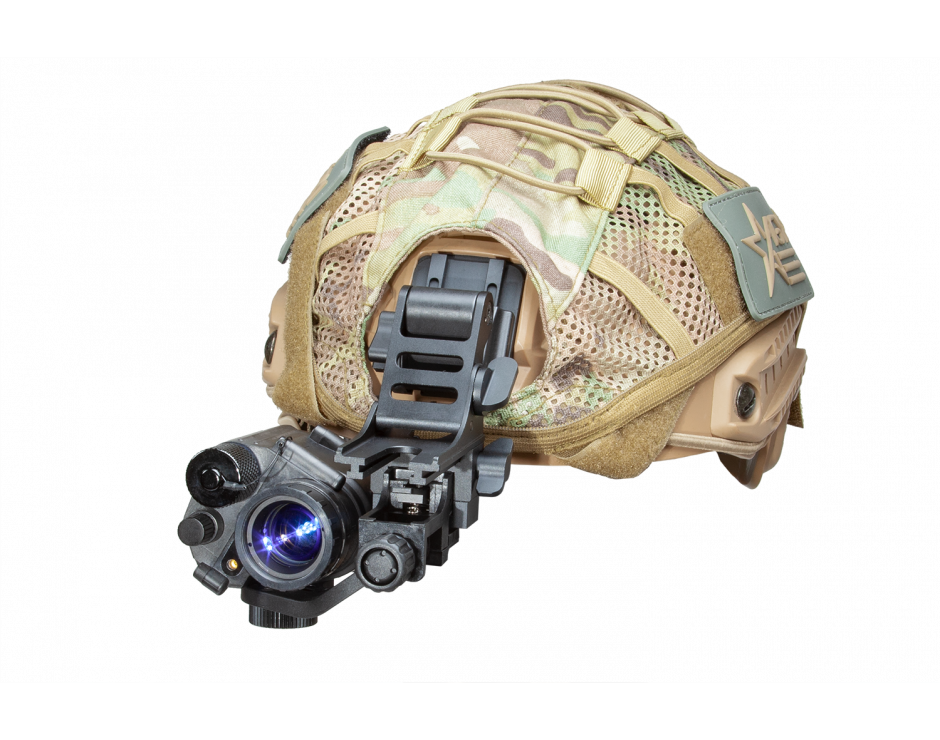

Th PeVS-14E Night Vision Monocular is a rugged, lightweight, and multi-purpose night vision device that can be used in some of the most challenging environments. The PVS-14E can be used as a handheld device, mounted on the included head harness, or can be mounted to traditional ballistic helmets. Equipped with an Advanced Auto Shut-off System, the PVS-14E saves power and enhances convenience by turning off and back on automatically when the device is articulated to the side and back into
operating position again.
The PVS-14E is outfitted with a more compact lens and eyepiece bringing the total unit weight to just 10.2 oz (290 grams). The unit has a flexible power delivery system making it compatible with AA and CR123 batteries, this system ensures uninterrupted operation by not limiting you to one battery choice. The unit is also equipped with an electronic polarity switching system which means you don’t have to worry about installing the battery in a specific orientation. Just place the battery in the compartment and you’re ready to go!
The unit includes manual gain control, an automatic bright light shutoff feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. When the light level returns below the threshold, the device will turn back on automatically.
Because of Global Vision’s commitment and confidence in product quality, the PVS-14E is backed by a 3-Year Warranty.
This unit conforms to 810G Military standards and demonstrates the highest quality form and function beyond military standards.

PVS-14E APW Features:

Unique electronic controller
Auto shut-off and manual gain control
Multiple battery compatibility (AA or CR123)
Automatic on/off switching system when articulating the device out of your view
More compact and lighter than a conventional PVS-14: 4.25 in / 108 mm and 10.2 oz / 290 g
Easy-to-use controls and adjustments
Versatile mounting options
Manual gain control
Built-In IR illuminator
Waterproof and rugged
3-year warranty

Tube Level Info:

Gen2+ Lvls	NL1/NW1 - Gen2+ Lvl1			NL2/NW2 - Gen2+ Lvl2			NL3 - Gen2+ Lvl3
Zone	1	2	3	1	2	3	1	2	3
>.015 or larger	0	0	0	0	0	0	0	0	1
>.012 - .015	0	0	0	0	0	1	0	1	1
>.009 - .012	0	1	1	0	2	2	1	2	2
>.006 - .009	0	1	2	1	2	2	1	2	2
.003 - .006	1	2	3	2	3	3	2	3	3
*Qty indicates Max Spots Allowed in Each Zone
**Spot Size (in.)

Gen3 Lvls	3NL1/3AW1 - Gen3 Lvl1			3NL2/3AW2 - Gen3 Lvl2			3NL3/3AW3 - Gen3 Lvl3
Zone	1	2	3	1	2	3	1	2	3
>.015 or larger	0	0	0	0	0	0	0	0	1
>.012 - .015	0	0	0	0	0	1	0	1	1
>.009 - .012	0	1	1	0	2	2	1	2	2
>.006 - .009	0	1	2	1	2	2	1	2	2
.003 - .006	1	2	3	2	3	3	2	3	3
*Qty indicates Max Spots Allowed in Each Zone
**Spot Size (in.)

PVS-14E APW Specifications:

Dimensions

108 × 63 × 69 mm (4,25 × 2,5 × 2,7 in)

Image Intensifier Tube

Gen 2+ "APW" FOM 1600+

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 2 IIT APW is the highest resolution and the cleanest offered by. There are practically no visible spots in Zone 1.

Magnification

Lens System

26 mm; F/1.2

FOV

40°

Focus Range

0.25 m to infinity

Diopter Adjustment

-6 to +2 diopters

Led Indicators

- Low Battery - IR On - Excessive Light Conditions

Infrared Illuminator

Yes

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Battery Type

One AA Alkaline or one AA Lithium L91 or one CR123 Lithium or one AA or RCR123 rechargeable battery up to 3.7V

Battery Life (Operating)

Up to 40 hours at 20°C

Operating Temperature Range

-51° C to +49° C (-60° F to 120° F)

Storage Temperature Range

-51° C to +85° C (-60° F to 185° F)

Weight

290 g (10.2 oz)

Package Includes

Night Vision Monocular, Head Mount Assembly, Lens Cap/ Daylaight Filter, Eye Cup, Helmet/ Head Mount Adapter, Soft Carrying Case, Neck Cord, Lens Paper, Sacrificial Window, Demist Shield, Manual, Battery

Warranty - 3 Years

Data Sheet
