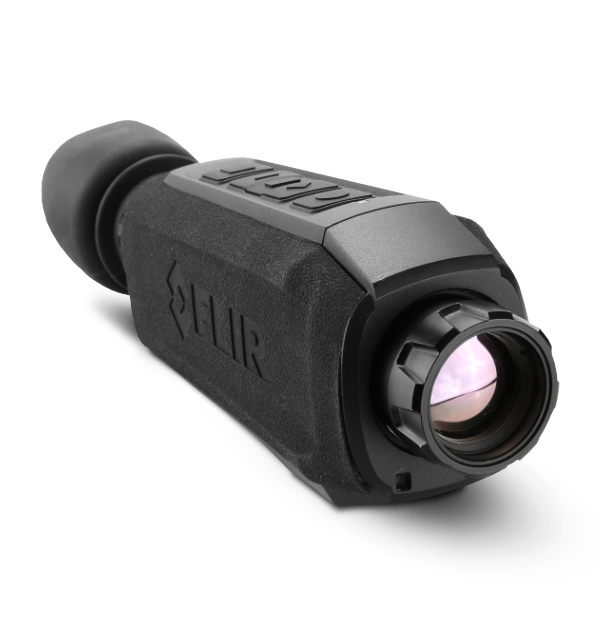

Scion PTM166 Thermal Vision Monocular 640x480 60Hz 25mm

Built to equip law enforcement professionals with superior thermal surveillance, the Scion PTM packs high-performance thermal imaging into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network. A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.

• LIVE ENCRYPTED VIDEO STREAMING

  Securely stream real-time thermal video to the command center via networked devices.

• VERSATILE LENS OPTIONS

  Available long-range lenses for the Scion family of thermal monoculars offers a new level of clarity and reach.

• SUPERIOR THERMAL DETECTION

  Sharp, 60 Hz thermal imaging powered by the breakthrough Boson thermal core.

SPECIFICATIONS

• Bluetooth: BLE 4.1+
• Geo Positioning [GPS]: Yes
• Internal Memory: 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
• Video Recording: Yes
• WiFi: Video Streaming
• Refresh Rate: 60 Hz

SENSOR & OPTICAL:

• Core Technology: BOSON 12 µm Vox Microbolometer
• Detector Type: 640 × 512
• Eye Relief: 16 mm
• Field of View: 18° × 13°
• Focus: Manual
• Lens System: 25 mm
• Optical Magnification: 1.3x
• Refresh Rate: 60 Hz

POWER:

• Auto Power Off: Yes
• Battery Life: Up to 4.5 hours at 20°C
• Battery Type: 6x CR123A 3V Lithium Battery

FILE STORAGE & COMMUNICATION:

• Bluetooth: BLE 4.1+
• Geo Positioning [GPS]: Yes
• Internal Memory: 2 GB Internal Storage / Optional microSD™ Card (up to 128 GB)
• Video Recording: Yes
• WiFi: Video Streaming

UI-UX:

• Accelerometer: Yes
• DateTime Stamp: Yes
• Display: Quad-VGA (1280x960) High definition display
• Image Capture: Yes
• Magnetic Compass: Yes
• Picture While Recording: Yes
• Real Time Clock: Yes
• Temperature Imaging Modes: White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava
• User Interface: USB-C; Power In; Video Out; Video and Image File Transfer
• Viewing Modes: Scouting, Picture-in-Picture

SYSTEM OVERVIEW:

• Digital Zoom: 1X | 2X | 4X | 8X
• Display Focus: Manual
• Size: 239 × 76.8 × 60.5 mm (9.4 × 3 × 2.4 in)

PHYSICAL:

• Color (housing): Black
• Mounting: ¼-20 Tripod Mount
• Weight: Without Batteries: 452 g; With Batteries 572 g

WARRANTY:

• STANDARD LIMITED WARRANTY PERIOD:
• 2 years on components and manufacturing defects, from original date of purchase.
•  EXTENDED LIMITED WARRANTY PERIOD:
• 3 years on components and manufacturing defects.10 years on uncooled detector from original date of purchase.
