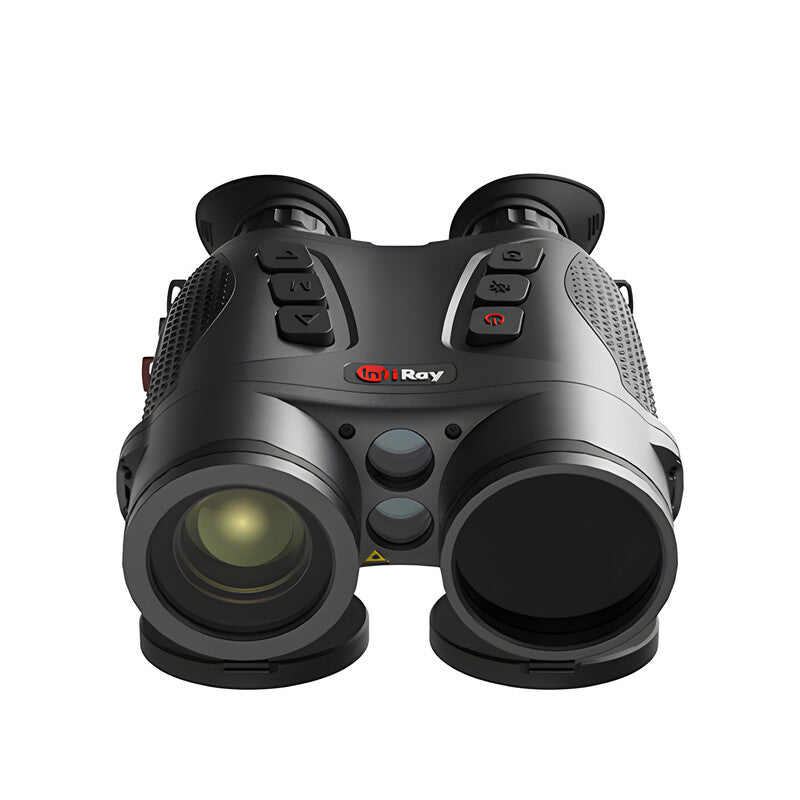

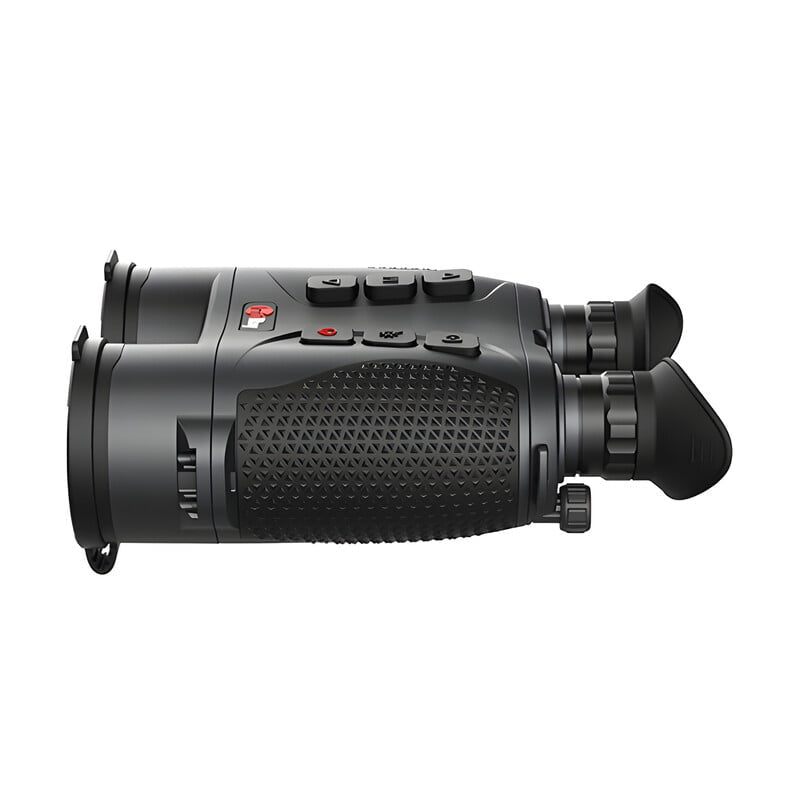

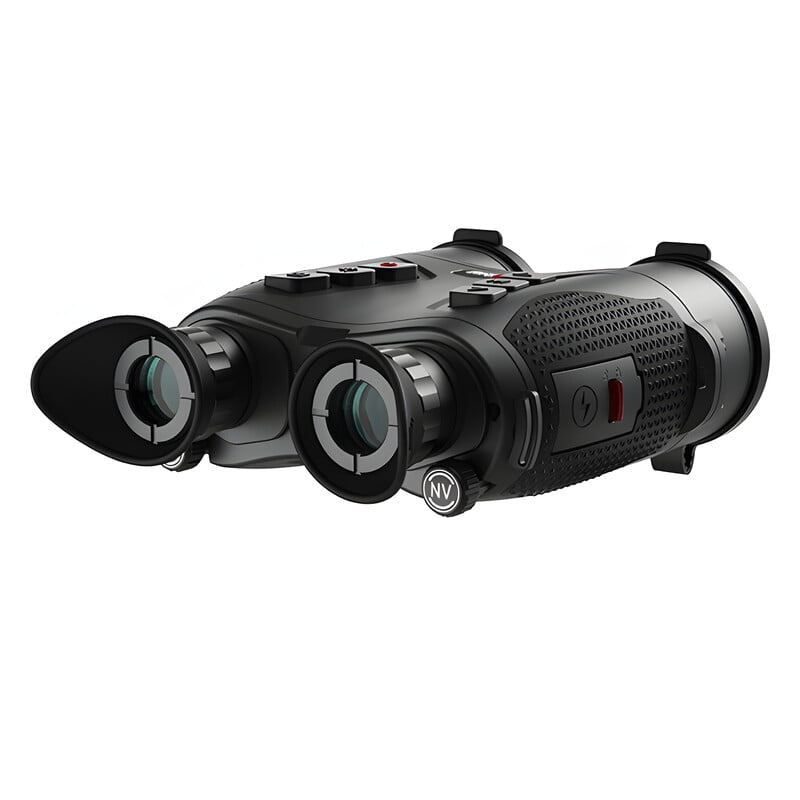

Thermal Imaging Binocular Gemini Series- GEH50R

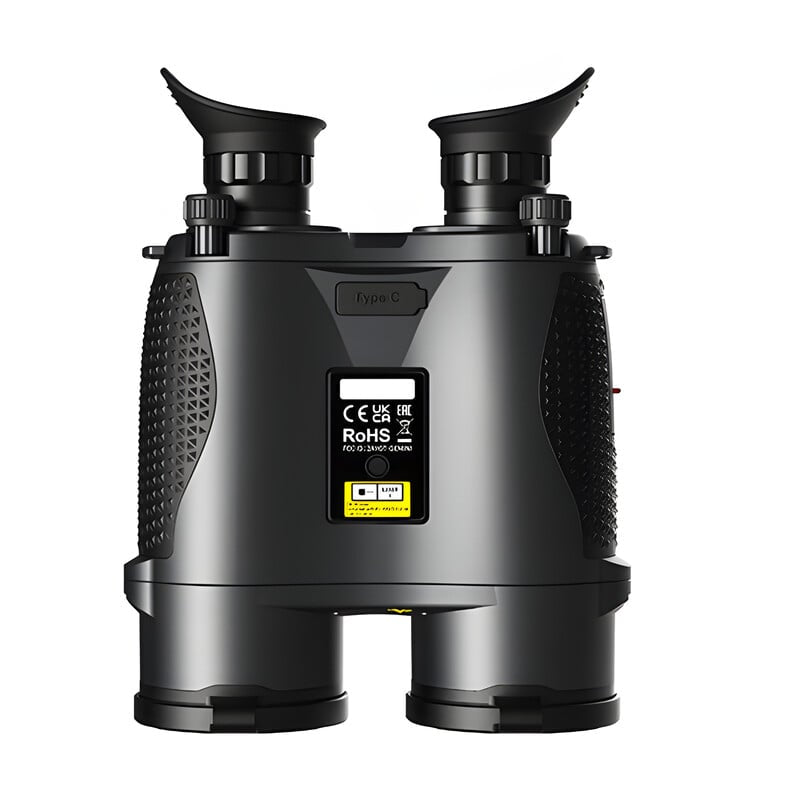

Gemini GEH50R – Binocular multispectral device in the high-end range

The Gemini GEH50R is the world's first multispectral binoculars with advanced thermal imaging technology, an HD day vision function and an integrated laser rangefinder

Presented with the Gemini GEH50R a new, multispectral optical thermal imaging binocular that combines the advantages of the latest thermal imaging and night vision technology with an integrated laser rangefinder and HD daylight function. The high-resolution thermal image sensor with 640 x 512 pixels, 12 micron pitch and a thermal sensitivity of less than 25 mk NETD is combined with a focusable color tag sensor that delivers razor-sharp images.

The Gemini GEH50R is perfect for game viewing, hunting, stalking and security purposes. The specially developed ergonomic shape of the GEH50R offers a high level of comfort and ease of use even during longer periods, allowing seamless switching between day, night and thermal vision or a fusion of image modes for the ultimate detection capability!

Stunning focusable observation during the day

Thanks to the focusable 4 μm color full HD daytime sensor, the Gemini can be used like binoculars, whether day or night. Day and Night modes offer 3,8x to 15,2x optical magnification, providing a real advantage when viewing wildlife even at long distances.

Powerful thermal imaging technology

The Gemini's powerful thermal imaging system detects the finest temperature differences up to 2600 meters.

Intelligent observation solution

With different scene modes such as infrared highlight, infrared edging and hotspot tracking, the Gemini thermal imaging binoculars represent a completely new generation of full-color fusion optics.
With the help of the intelligent PiP (Picture and Picture) function, the user can mix the output mode and thus view the thermal mode with an enlarged thermal image or the thermal mode with a daily PiP and vice versa. For example, with day color mode and thermal PiP, the user can view a forested area and detect heat sources through the PiP window and then observe with the main color channel.

Gemini GEH50R impresses with its ergonomic design

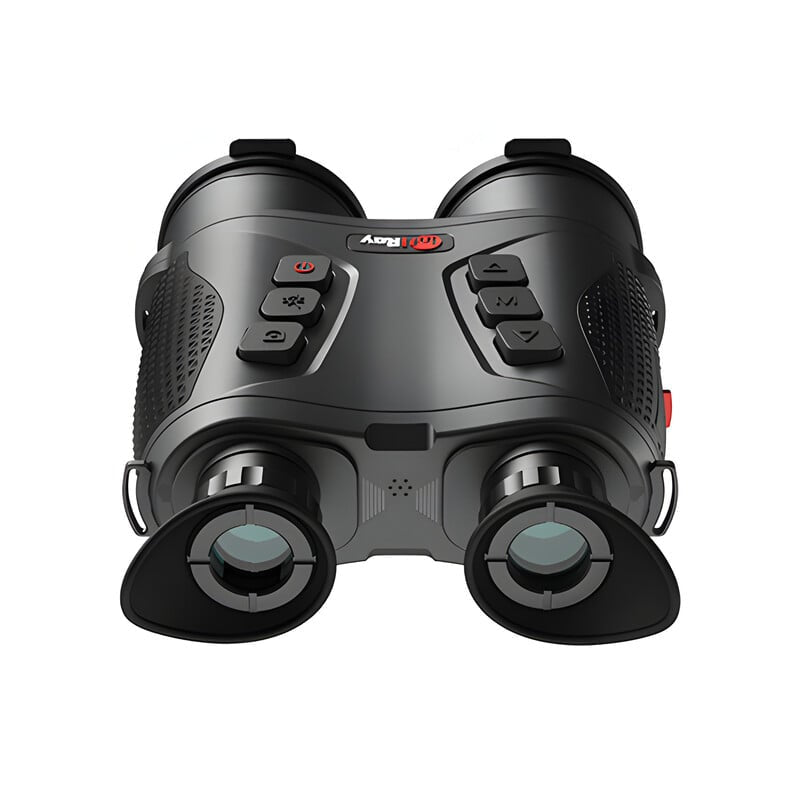

The Gemini GEH50R is designed for comfortable use even during continuous use. The two eyepieces and two AMOLED displays provide an enormous field of view.
The optimizations also include the correct placement of the buttons, a C-shaped curved housing design with adjustable eye relief and diopter compensation from -5 to +5 diopters.

Integrated laser range finder

The Gemini GEH50R also has an integrated laser rangefinder with a range of 1200 meters, which can be used in both continuous and single-scan modes to determine distances extremely accurately in all operating modes.

Fusion mode

An absolute highlight of the Gemini GEH50R is the so-called fusion mode, in which the information from thermal imaging and digital night vision images are superimposed. This results in improved detail reproduction in both optical levels and gives you an even more detailed image that makes it possible to recognize even the smallest differences.

Night vision mode

The Gemini GEH50R works great in low light and reliably delivers a detailed color image. If that Gemini GEH50R is equipped with the included IR illuminator, it can also provide a crystal clear night vision image that will allow the user to see even more details.

Capture the moment and share it with him Gemini GEH50R

The integrated recorder of the Gemini GEH50R allows you to record and save video, sound and photo files. With its 64GB storage, hours of footage and hundreds of images can be recorded and then viewed at home or even shared on social media.

The Gemini GEH50R has the following technical characteristics:

Thermal imaging sensor:

• Sensor: VOx ceramic
• Sensor Resolution: 640 x 512 pixels
• Sensor sensitivity: < 25 mk
• Sensor Pitch: 12 µm
• Lens: 50 mm
• Aperture: F1.0
• Optical magnification: 4,1x – 16,4x

Digital night vision imaging

• Sensor: VOx ceramic
• Sensor Resolution: 1920 x 1080 pixels
• Sensor Pitch: 4 µm
• Lens: 35 mm
• Aperture: F1.1
• Optical magnification (day/night vision): 3,8x to 15,2x
• IR emitter: 940 nm

Laser range finder

• Laser rangefinder range: 3 – 1200 m
• Laser rangefinder accuracy: +/-1 m
• Laser class: 1 – 905 nm

General

• Display Type: AMOLED
• Display Resolution: 1024 x 768 Pixels
• Frame Rate: 50Hz
• Color palettes: white hot, black hot, red hot, color and hot target highlight, daylight, fusion
• Field of view width at 100 m: 15 m
• Field of view: 8,78° × 6,59°
• Digital zoom: 1x, 2x, 3x, 4x,
• Discovery distance (object 1,70 x 0,5 meters): 2600 m
• Protection Class: IP67
• Digital compass: yes
• WLAN (Wi-Fi): Yes
• Photo Recording: Yes/Video Recording: Yes/Sound Recording: Yes
• Internal Memory: 64 GB
• Diopter adjustment for glasses wearers: +5 ~ -5
• Power supply: removable battery
• Battery life: > 6 h
• App support: yes
• WLAN / WiFi: yes
• Battery: 2 x 18650
• USB: Type-C
• Size: 198 156 x x 66 mm
• Weight: approx. 960 g

Scope of Delivery:

• thermal imaging device Gemini GEH50R
• 2 x 18650 batteries
• Battery charger
• USB charging cable / data cable / video output cable
• IR emitter with holder
• Carry Bag
• Shoulder strap for hanging
